manifold valves

Name: manifold valves
Brand: C S Valves India
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

manifold valves Specification

Material
Stainless Steel

Technique
Precision Machined

Connection
Threaded / Flanged

Shape
Rectangular

Head Code
Square

Type
Manifold Valve

Port Size
1/4 Inch, 1/2 Inch NPT/ BSP

Style
3-Valve and 5-Valve Manifold

Pressure
Up to 6000 PSI

Application
Instrument Connection, Pressure Gauge Isolation

Seal Type
PTFE or Graphite Packing

Mounting Type
Panel / Pipe / Direct Mounting

Number of Ports
3 (2 isolation + 1 equalizer)

Compliance
Meets ANSI/ASME Standards

Media Compatibility
Air, Water, Oil, Gas, Steam

Leakage
Bubble Tight

Handle Type
T-bar / Round Knob Handle

Temperature Range
-20C to 250C (Depending on Material)

Surface Finish
Electropolished / Passivated

End Connection
BSP, NPT, or Flanged as per request

About manifold valves

A Manifold Valve is a single-block device that houses multiple valves (typically needle valves) designed to isolate, equalize, and vent pressure in industrial systems. They are the standard interface between process piping and sensitive instrumentation like pressure transmitters and gauges.

Instead of using multiple separate pipes and fittings, a manifold consolidates these into one unit, which reduces the number of potential leak points and simplifies maintenance.

Type	Components	Primary Use

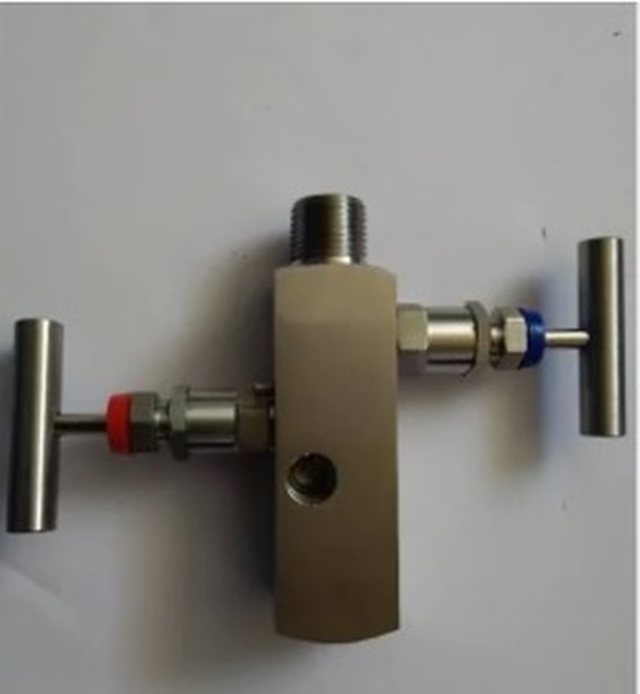

2-Way Manifold	1 Isolate, 1 Vent	Static Pressure: Used with pressure gauges or transmitters to block the flow and bleed off pressure for calibration.
3-Way Manifold	2 Isolate, 1 Equalize	Differential Pressure (DP): Allows the operator to equalize pressure between high and low sides before zeroing a transmitter.

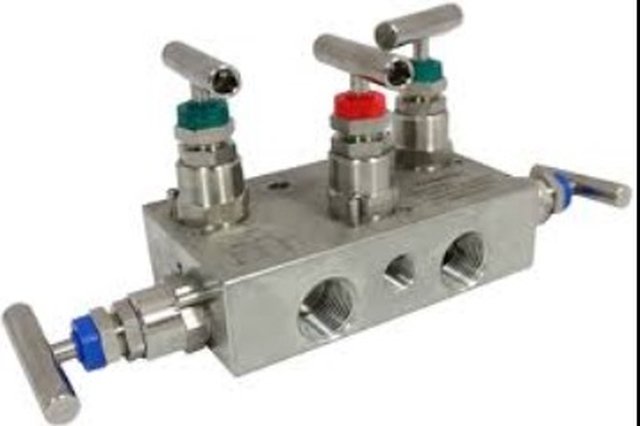

5-Way Manifold	2 Isolate, 1 Equalize, 2 Vent	Precise DP/Gas Metering: Similar to 3-way, but includes two vent valves to bleed both sides or perform multi-point calibrations.

Precision Machined for Superior Performance

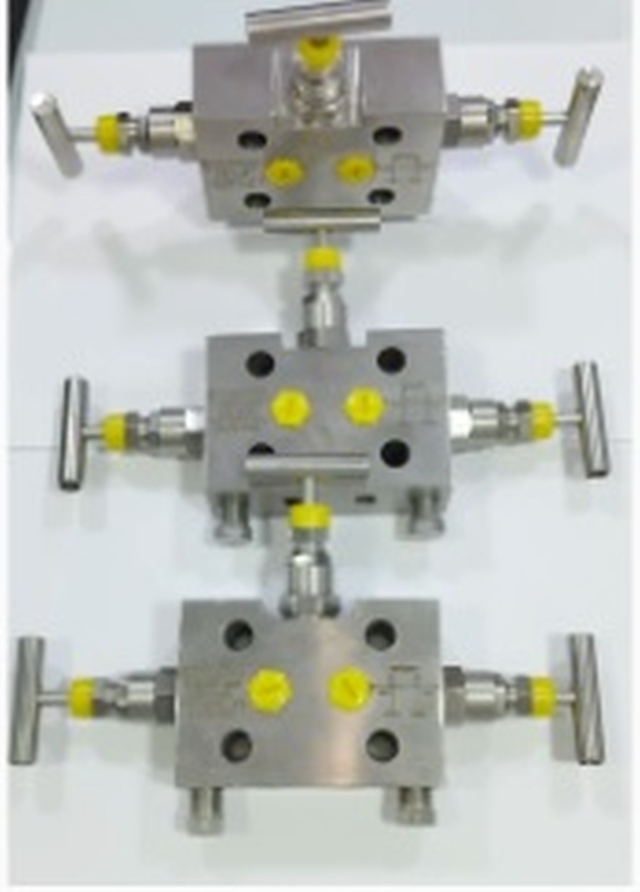

Our 3-valve and 5-valve stainless steel manifolds are meticulously machined to provide accurate control and isolation in critical instrumentation systems. With bubble-tight sealing and options for both PTFE or graphite packing, these valves ensure consistent leak-proof operation across a broad selection of media. The electropolished or passivated finishes boost corrosion resistance, making them ideal for demanding environments.

Versatility in Mounting and Operation

Designed for ultimate flexibility, our manifold valves are compatible with panel, pipe, or direct mounting. Available with T-bar or round knob handles, they accommodate different operator preferences and installation setups. Each manifold can be configured with BSP, NPT, or flanged end connections as per the application, ensuring an exact fit for existing plant infrastructure.

FAQ's of manifold valves:

Q: How are manifold valves with PTFE or graphite packing used in instrumentation systems?

A: These manifold valves are utilized to control, isolate, and equalize pressure in instrumentation and pressure gauge systems. The PTFE or graphite packing ensures leak-free performance and reliability even under fluctuating pressures and temperatures.

Q: What are the advantages of selecting a bubble-tight manifold valve for instrument applications?

A: Bubble-tight manifold valves prevent any loss of process media, providing maximum safety and measurement accuracy. This feature is essential for critical applications, ensuring instruments receive precise pressure readings without contamination or leakage.

Q: When should I choose PTFE over graphite packing in manifold valves?

A: PTFE packing is recommended for most standard applications where chemical compatibility and a wide temperature range are necessary, while graphite packing should be chosen for higher temperature or more aggressive media environments due to its excellent resistance to thermal decomposition.

Q: Where can these manifold valves be mounted?

A: Our manifold valves are engineered for versatile mounting options: they can be installed on panels, pipes, or directly onto instruments, allowing seamless integration into existing or new setups.

Q: What process technique ensures the quality and durability of these manifold valves?

A: Each valve is precision machined and finished using electropolishing or passivation, enhancing both dimensional accuracy and corrosion resistance, which contributes to long-term durability even in harsh industrial conditions.

Q: Which media are compatible with these stainless steel manifold valves?

A: These versatile valves are suitable for use with air, water, oil, gas, and steam, making them a reliable solution for diverse industrial sectors.

Q: What benefits do customers gain by sourcing manifold valves from a manufacturer, supplier, and exporter in India?

A: By sourcing from an Indian manufacturer, supplier, or exporter, customers benefit from competitive pricing, high-quality standards (ANSI/ASME compliance), prompt delivery, and tailored options according to project specifications worldwide.
